Model | T220A |
Working Area | 6m/9m/12m |
Laser Output Power | 1000w – 4000w |
Effective Cutting Diameter | 20-220mm |

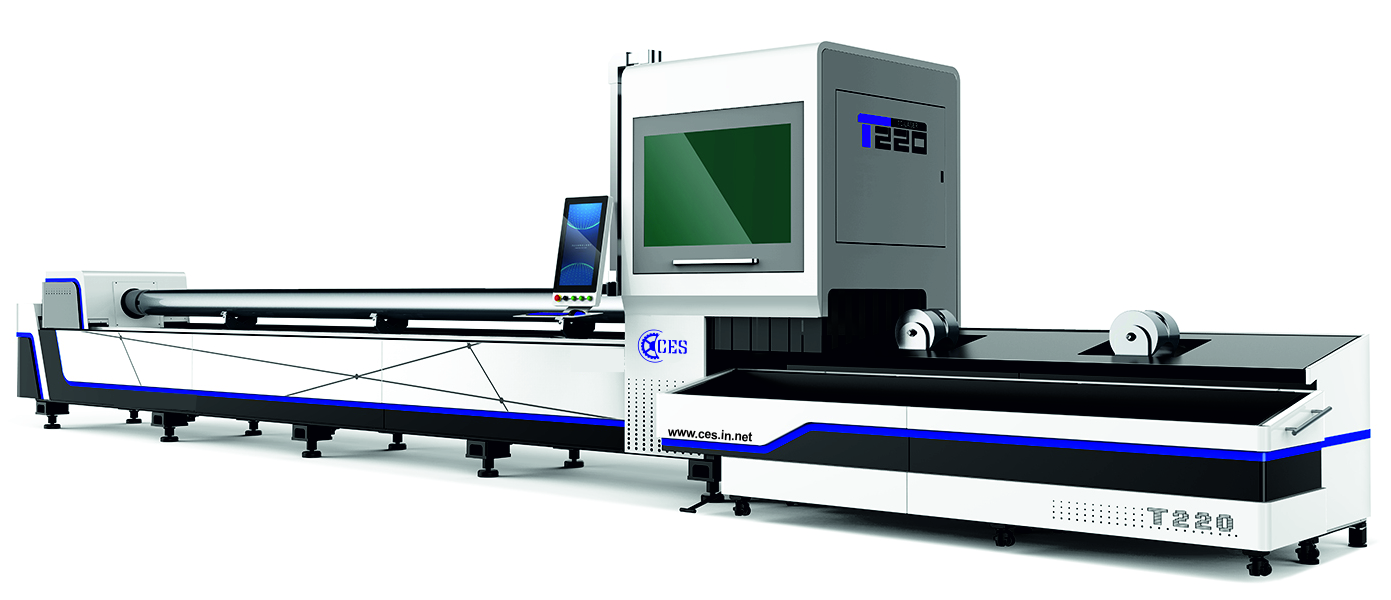

Auto Feeding Tube&Pipe Fiber Laser Cutting Machine T220A
Auto Feeding Tube&Pipe Fiber Laser Cutting Machine T220A
It addopts bus control, fast and efficient, and also adopts rack transmission, follow-up roller, make sure higher cutting accuracy. It can cut square pipe, round pipe, waist round pipe, oval pipe and some special-shaped pipe, cutting precision up to 0.01mm, widely used in sports equipment, various types of pipe, water pipes, oil pipelines and other industries. And it comes with auto feeding system, labor-saving, high efficiency, more secure.
Product description
Product advantage

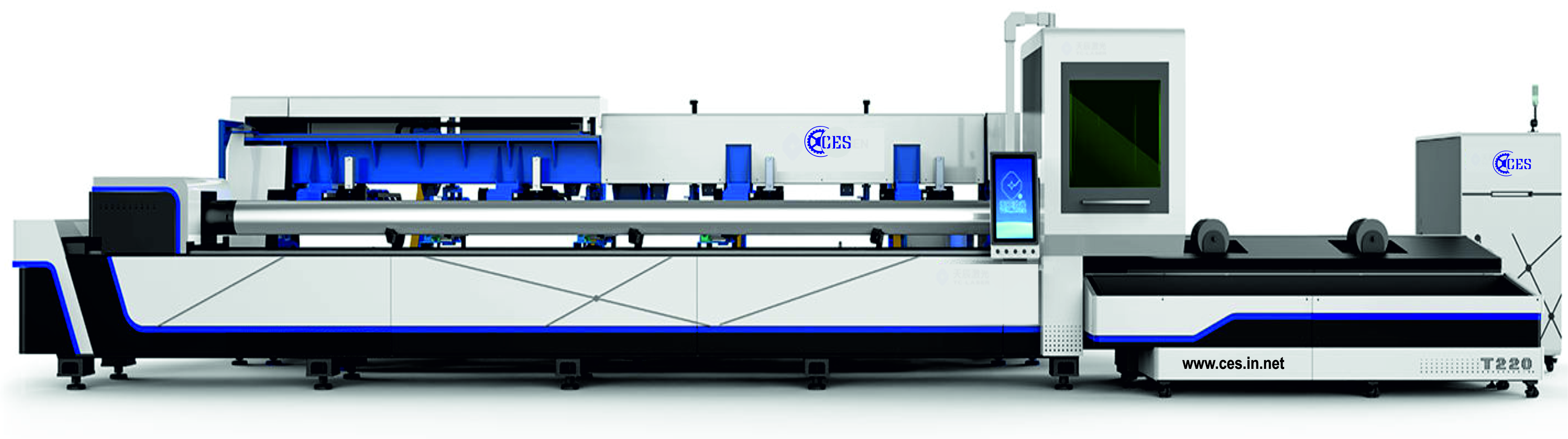

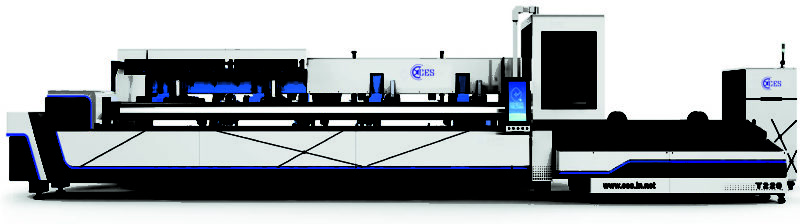

Auto Feeding System
The automatic feeding and unloading device comprises a Auto feeding device and a unloading feeding device. T220A automatic feeding device is controlled by the CNC control system, which is seamlessly connected with the pipe cutting machine to realize uninter rupted production. Automatic feeding of whole bundle of pipes, intelligent layout of pipes by control system, automatic conveying process.
Servo follower supporting device
The unique supporting device keeps contact with the pipe surface when the pipe is fed and rotated. The supporting force is set according to the pipe specification to ensure effective support, prevent the pipe from sagging, reduce the axis swing when the pipe rotates, and improve the machining accuracy.
Rack transmission, Pneumatic chuck
It uses the gear transmission chuck to hold the design and can adjust the center automatically, the operation is also very simple. The machining diameter is between 20-200mm.The cutting precision of the product is up to 0.01mm, which can greatly improve the work efficiency
Laser head- Automatic focusing
The automatic focusing laser head has a built-in motor drive unit that automatically drive the focusing mirror to change it’s position through a linear mechanism to complete the rapid perforation of the thick plate and automatically cut different thicknesses plates and materials.
Technical Data
T220A | T320A | |
---|---|---|
Cutting Length | 6500mm | 6500mm |
Cutting Diameter | 20-220mm | 20-320mm |
Laser Power | 1000-4000W | 1000-4000W |
Maximum Rotating Speed | 110RPM | 110RPM |
Positioning Accuracy | ≤0.05mm | ≤0.05mm |
T220A | T320A | |
---|---|---|
Cutting Length | 256in | 256in |
Cutting Diameter | 0.79-8.66in | 0.79-12.6in |
Laser Power | 1000-4000W | 1000-4000W |
Maximum Rotating Speed | 110RPM | 110RPM |
Positioning Accuracy | ≤0.05mm | ≤0.05mm |
