| Model | E3015T |
| Working Area | 3000*1500mm |
| Laser Output Power | 1000-6000W |
| Max Moving Speed | 140m/min |

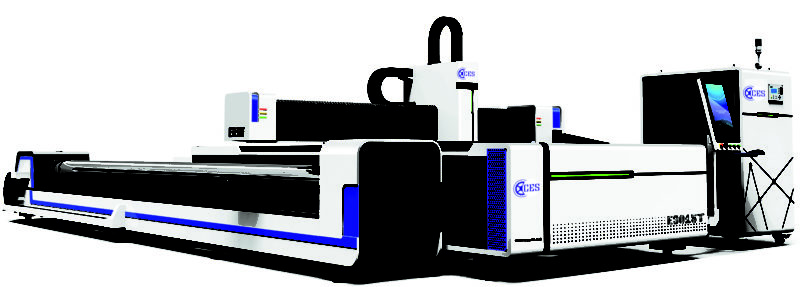

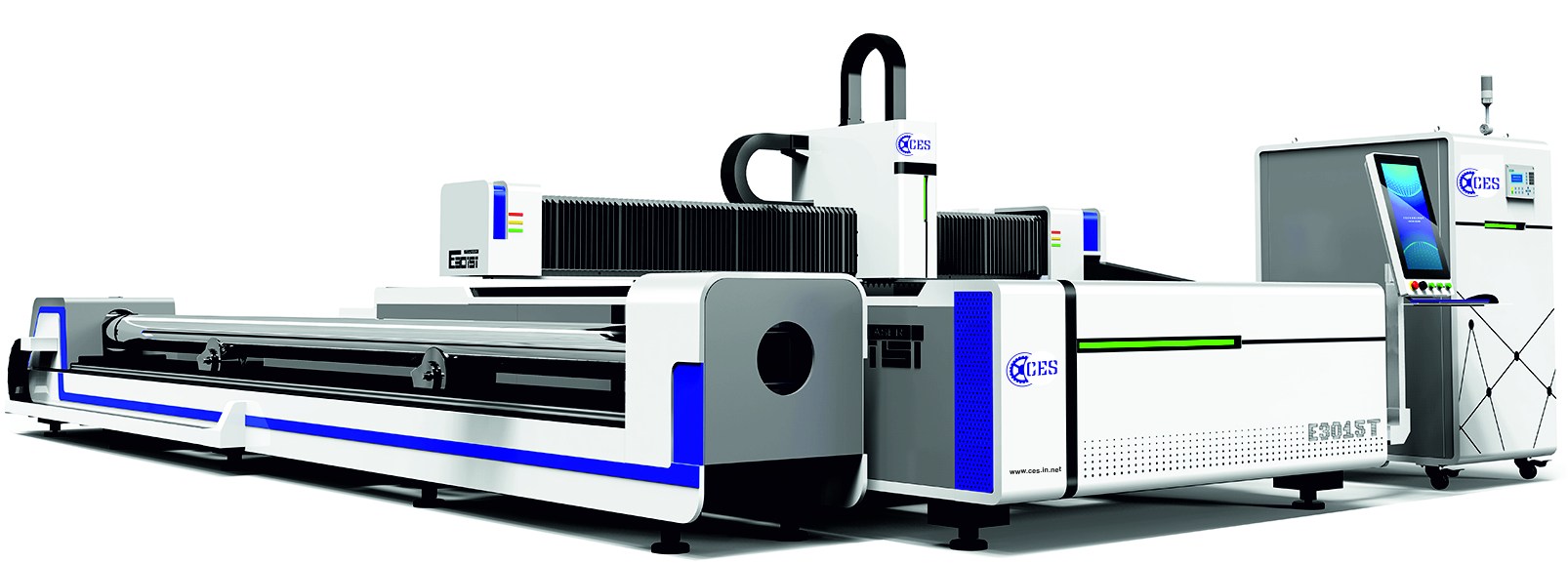

Exchange Table Sheet & Tube Fiber Laser Cutting Machine ET
Exchange Table Sheet & Tube Fiber Laser Cutting Machine ET
Exchange table sheet & tube fiber laser cutting machine not only realizes the cutting of two different materials shapes on the same machine tool but also saves more than 50% of space and cost with the exchange platform. and this machine come with the air chuck, gear transmission, solved many customer’s low precision of cutting pipe problem.
Product description
Product advantage
Independent R&D dynamic machine body
26 years manufacturing experience, the bed adopts independent research and development, dynamic design, forced air cooling measures, adopts Mortise & tTenon structure, increase the strength 50% then cast iron machine body, keep high cutting accuracy.
Pipe cutting machine
Tube chuck uses the gear transmission to hold the design and can adjust the center automatically, the operation is also very simple. The machining diameter is between 20-200mm.The cutting precision of the product is up to 0.01mm, which can greatly improve the work efficiency
Super fast exchange platform
Cylinder lock, chain-type transmission, let the machine running more stable. Table roller adopts eccentric wheel structure to ensure the height of each wheel is consistent and play the supporting role. Platform exchange time super fast, finish in 10S, high efficiency.
Super touch screen industrial computer
The screen adopts high definition capacitive touch screen, equivalent to positioning accuracy of ipad. The powerful waterproof and breathable system makes the space breathe and use more smoothly.
High definition plasma tempered glass makes the screen more delicate and comfortable to operate. Supper large display menu layout is simple and intuitive, built-in cutting parameters to improve machining reliability.
Technical Data
| E3015T | E4020T | E6020T | |
|---|---|---|---|
| Laser Power | 1000-6000W | 1000-6000W | 1000-6000W |
| Working Area | 3000*1500mm | 4000*2000mm | 6000*2000mm |
| Tube Length | 6050mm | 6050mm | 6050mm |
| Max Acceleration | 1.4G | 1.4G | 1.4G |
| Max Moving Speed | 140m/min | 140m/min | 140m/min |
| Positioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Repositioning Accuracy | ±0.02mm | ±0.02mm | ±0.02mm |
| E3015T | E4020T | E6020T | |
|---|---|---|---|
| Laser Power | 1000-6000W | 1000-6000W | 1000-6000W |
| Working Area | 118*59in | 157*79in | 236*79in |
| Tube Length | 238in | 238in | 238in |
| Max Acceleration | 1.4G | 1.4G | 1.4G |
| Max Moving Speed | 5512in/min | 5512in/min | 5512in/min |
| Positioning Accuracy | ±0.03mm | ±0.03mm | ±0.03mm |
| Repositioning Accuracy | ±0.02mm | ±0.02mm | ±0.02mm |
