| Model | H1230 |
| Working Area | 12000*3000mm |
| Laser Output Power | 3000-8000W |
| Max Moving Speed | 120m/min |

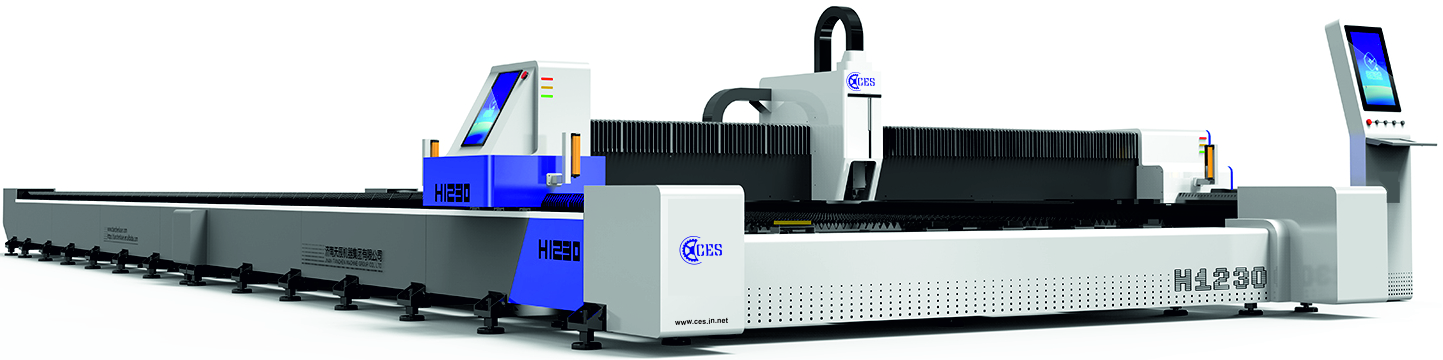

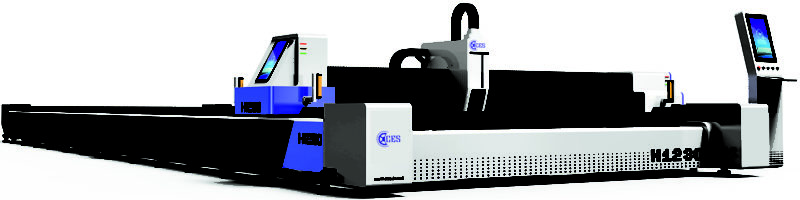

Top 1 Superwide Fiber Laser Cutting Machine H
Top 1 Superwide Fiber Laser Cutting Machine H
Tianchen independent research and development design, H1230 adopts “double straight” air duct structure, 24 dust removal ports, first Unique double operation control screen, main body adopts bridge design, It solve the most customer cutting accuracy, speed, dusk removal problem. At now it is the No.1 supper wide fiber laser machine in china.
Product description
Product advantage
Superwide-format stable working area
26 years manufacturing experience, the bed adopts independent research and development, dynamic design, Superwide-format, split structure, simple structure, convenient disassembly and installation, facilitate transportation，high rigidity, keep high cutting accuracy.
24 parts dust removal system
Tianchen laser independent research and development design, H1230 adopts “double straight” air duct structure, with 24 dust removal ports, rapid dust removal, air purification, dust removal effect is excellent;
Automatic start and stop system, compared with the traditional partition dust removal is more energy saving.
First Unique double operation control screen
First Unique double operation control screen, ergonomics and easy to operate. Unique double – screen structure, easy for users to use.
Convenient and flexible; The machine can be operated to cut at any part of the table.Especially for large surplus materials can be directly moved to the place for cutting, saving materials.
Special Heavy welding machine body
Machine bed adopts independent research and development, dynamic design, “ANSYS” professional software for finite element analysis, many times to optimize the design, improve the dynamic performance of the bed system; The bed adopts linear guide rail, high speed, high precision, rack and pinion transmission, maximum positioning speed 100M/min.
Technical Data
| H1230 | |
|---|---|
| Working Area | 12000*3000mm |
| Positioning Accuracy | ±0.05mm |
| Repositioning Accuracy | ±0.03mm |
| Maximum Speed | 120m/min |
| Laser Power | 3000-8000W |
| Working Table | Blade Working Table |
| Maximum Acceleration | 1G |
| H1230 | |
|---|---|
| Working Area | 472*118in |
| Accuracy of Positioning | ±0.05mm |
| Repositioning Accuracy | ±0.03mm |
| Maximum Speed | 4724in/min |
| Laser Power | 3000-8000W |
| Working Table | Blade Working Table |
| Maximum Acceleration | 1G |
